Hooptech ICTCS Clamping System Tubular Arm Mounted Clamping System
The InterChangeable Tubular Clamping System has interchangeable windows and is used primarily for MULTIHEAD APPLICATIONS.

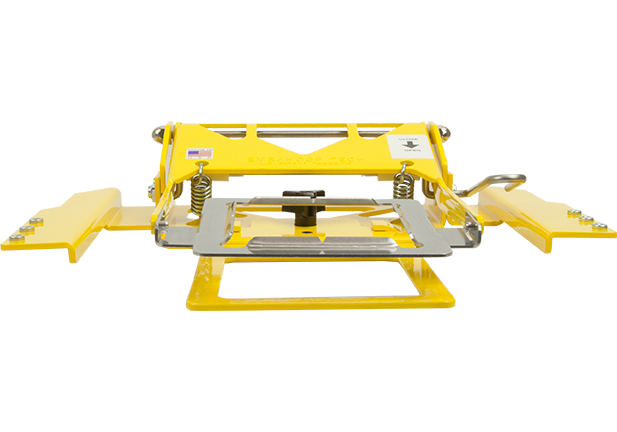

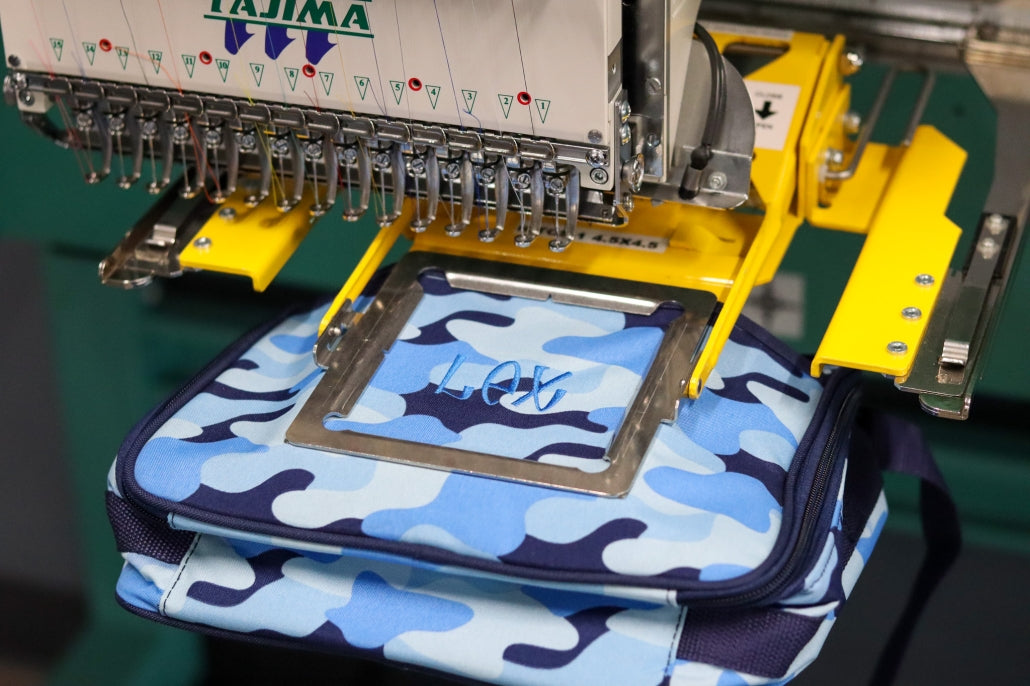

All of the ICTCS Clamps use a spring loaded clamping chassis to hold interchangeable upper and lower clamping windows. These windows clamp the fabric and backing between the upper and lower windows and hold the fabric in position during sewing. The ICTCS chassis/window assembly attaches to the embroidery machine using the same tubular arms that support regular plastic embroidery hoops. Adapter arm styles are available for nearly all major industrial embroidery machine manufacturers and machine types. If you are currently using plastic hoops, then chances are that we have an ICTCS clamp that fits your machine *.
Each size ICTCS Clamping System (1-2-3) has a number of window sizes available that are exclusive to each size clamp. These window sets, (upper & lower) are easily and quickly changed without any tools. Loosening a single knob releases the bottom window from the chassis base, and the top window is released from the clamp top pins by gently spreading the support arms. The changeover takes less that a minute.
Tubular Arm Mounted Clamping System

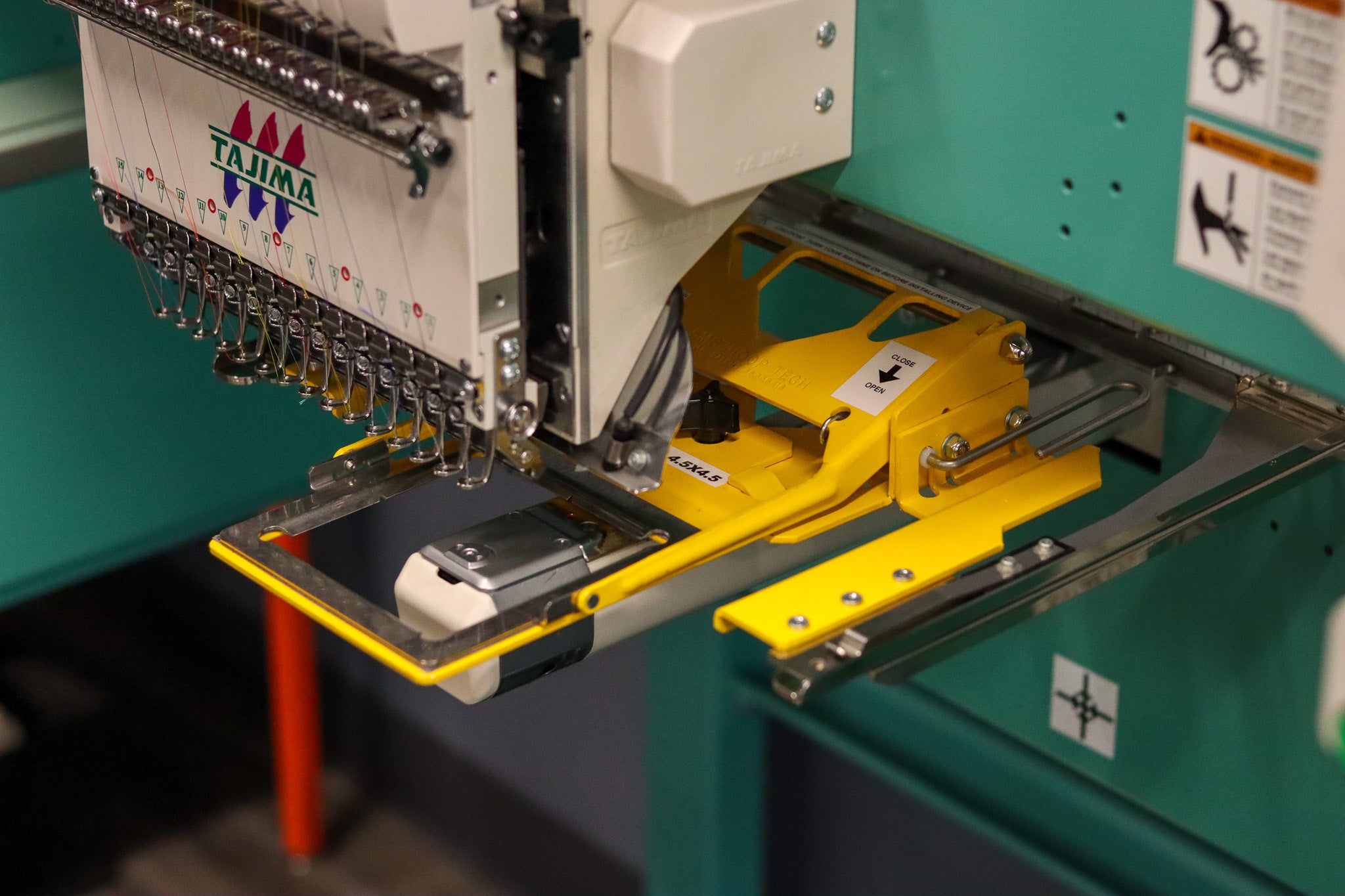

The ICTCS-1 is recommended for multi head machine applications. Inter-Changeable Tubular Clamping System mounts to your machine the same way that standard plastic hoops mount. So it’s easy to install and remove quickly. The spring loaded clamp is actuated by a single lever, making clamping easy. Stainless steel adapter arms are available to fit all major machine configurations. If you use plastic hoops now, we have a clamp to fit your machine.
